The 17mm White Core PVC Co-Extruded Cabinet Board is a premium cabinetry material engineered with advanced three-layer co-extrusion technology—an innovative process that fuses distinct material layers in a single production step to eliminate delamination risks. This rigid board features a dense outer layer of high-purity rigid PVC (containing 99.5% virgin resin for enhanced durability), a lightweight closed-cell foam core (with uniform bubble distribution to ensure consistent strength), and a smooth white inner layer (formulated with titanium dioxide for long-lasting whiteness). By combining structural strength with aesthetic appeal, it addresses the common pain points of traditional wood-based boards, such as warping and formaldehyde emission. With a thickness of 17mm, it strikes the perfect balance between durability (able to support 30kg of static load per square meter) and workability, making it ideal for both residential and commercial cabinetry projects. Certified by CE (EN 13950) (a standard specifically for plastic building materials) and RoHS (restricting hazardous substances like lead and cadmium), this board meets strict European standards for safety, low formaldehyde emission (measured at <0.01mg/m³, far below the EU limit of 0.1mg/m³), and environmental friendliness. Its closed-cell foam structure ensures minimal water absorption, while the white core provides a clean, uniform base that enhances paint and laminate adhesion—eliminating the need for additional priming and reducing installation time by up to 30%.

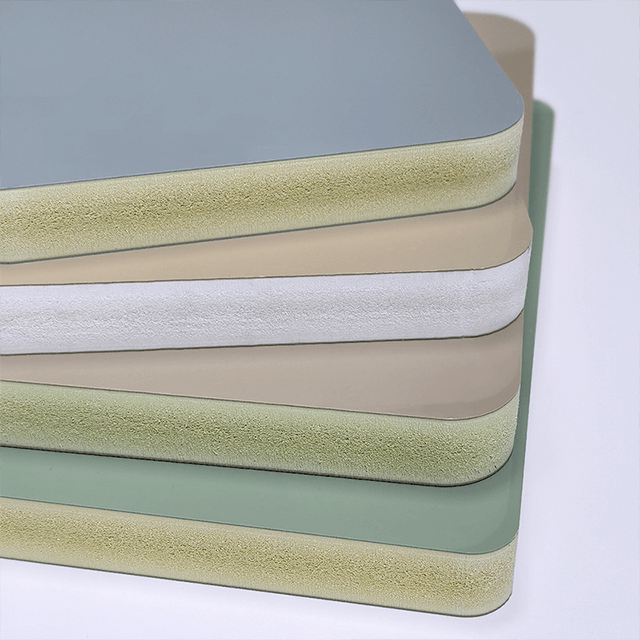

Tri-Layer Co-Extrusion Structure
The outer layers are formulated with high-density PVC (0.8g/cm³) to resist scratches (passing the EN ISO 105-X12 scratch test with a 4H pencil), impacts (withstanding 1kg weight drops from 1m height without cracking), and daily wear (maintaining integrity after 10,000 cycles of friction testing). The inner foam core, with a density of 0.3g/cm³, reduces overall board weight by 40% compared to solid PVC boards without compromising strength. This structure enables easy cutting (with standard circular saws or jigsaws), drilling (no pre-drilling required for screws up to 5mm diameter), and routing (supports intricate edge profiles like ogee or chamfer) with standard woodworking tools—making it a favorite among cabinet makers for its time-saving processing.
Moisture & Stain Resistance
Thanks to its closed-cell design, the board absorbs less than 0.5% water by weight after 24-hour immersion in room-temperature water, a performance that remains consistent even in environments with 80% relative humidity (common in bathrooms and coastal homes). This prevents warping (dimensional change <0.2% after 30 days of humid exposure) or swelling, which are major issues for MDF or plywood cabinets. The non-porous outer surface resists stains from oils (e.g., cooking oil), sauces (e.g., tomato sauce), and cleaning agents (e.g., bleach diluted to 5%), ensuring long-term visual integrity—simply wiping with a damp cloth removes most stains without leaving residues.
Aesthetic Versatility
The bright white core, tinted with food-grade titanium dioxide, eliminates the need for additional priming, allowing direct application of water-based paints, wood veneers, or high-pressure laminates (HPL). Its surface roughness (Ra <0.8μm) minimizes visible seams when panels are joined, creating a sleek, professional finish for cabinet doors (including shaker-style and flat-panel designs), drawer fronts, and side panels. For custom projects, it can also be printed with digital patterns (e.g., marble or wood grain) using UV-curable inks, further expanding its design potential.
Residential Cabinetry
Perfect for kitchen cabinets (both upper wall cabinets and lower base cabinets), bathroom vanities (including those with integrated sinks), and wardrobe systems (walk-in closets or built-in wardrobes), where moisture resistance and easy maintenance are critical. The 17mm thickness provides sufficient rigidity for heavy countertop loads—supporting quartz or granite countertops up to 20mm thick without additional bracing. In family homes with children, its non-toxic composition (no formaldehyde or heavy metals) also ensures safe indoor air quality.
Commercial Fit-Outs
Widely used in hotel rooms (mini-bar cabinets and bathroom vanities), restaurant kitchens (storage cabinets for cookware and ingredients), and retail display cabinets (clothing stores or electronics shops). Its compliance with low-VOC (volatile organic compounds) standards (<1g/L of VOC emissions) makes it suitable for indoor spaces with strict air quality requirements, such as kindergartens or healthcare clinics. Additionally, its resistance to frequent cleaning (compatible with commercial disinfectants) ensures durability in high-traffic areas.
Custom Furniture
Ideal for crafting modular storage units (bookshelves or toy storage), built-in shelving (living room media centers), and decorative panels (accent walls or room dividers). Its machinability allows for intricate designs, such as routed edges (for a premium look), carved details (e.g., floral patterns), or cutouts (for cable management in media cabinets). For modern minimalist designs, it can also be used as a standalone material without additional finishes, leveraging its clean white appearance.
Q: How long does this cabinet board last in humid environments?
A: With proper installation (including sealing edges with PVC edge banding to prevent moisture penetration), it maintains structural integrity for 10–20 years in high-moisture areas (e.g., bathrooms or kitchens). This outperforms wood-based panels (which typically last 3–5 years in such environments) that are prone to rot, mold, or insect infestation.
Q: Can it be used with standard cabinet hardware?
A: Yes, its dense outer layers (1.2mm thick) securely hold screws (size #6–#8), hinges (including soft-close and self-closing types), and handles (metal or plastic) without splitting—even when hardware is reinstalled up to 3 times. It is compatible with all common cabinet fittings, such as drawer slides (ball-bearing or undermount styles) and shelf supports (pin or clip types).
Q: Is the white core color UV-stable?
A: The core is formulated with 2% UV inhibitors (specifically benzophenone derivatives) to resist yellowing. In accelerated UV testing (simulating 5 years of outdoor indirect sunlight exposure), the color change (ΔE) is less than 1.5—well below the industry threshold of 3 for visible discoloration—ensuring consistent whiteness even in spaces with direct sunlight (e.g., kitchen windowsills).
Q: Do I need to seal the edges after cutting?
A: While the closed-cell structure minimizes moisture ingress, sealing cut edges with PVC edge banding (heat-sealed or adhesive-backed) is recommended for high-moisture areas. This step extends the board’s lifespan by preventing water from seeping into the foam core and ensures a seamless aesthetic.
