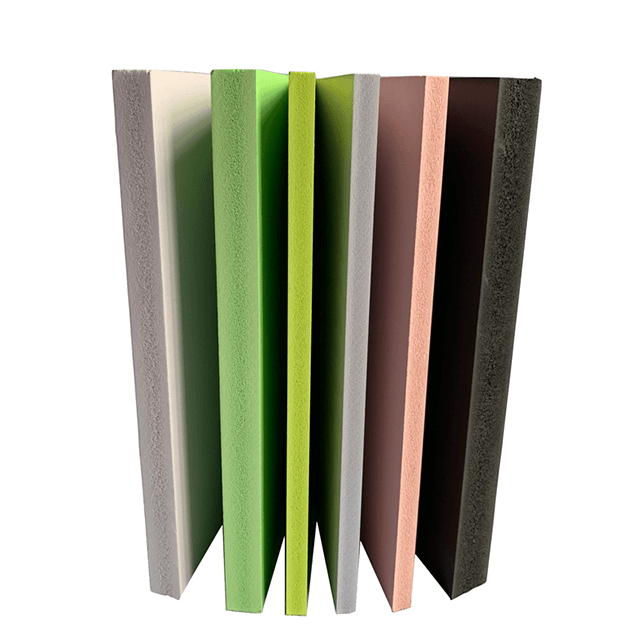

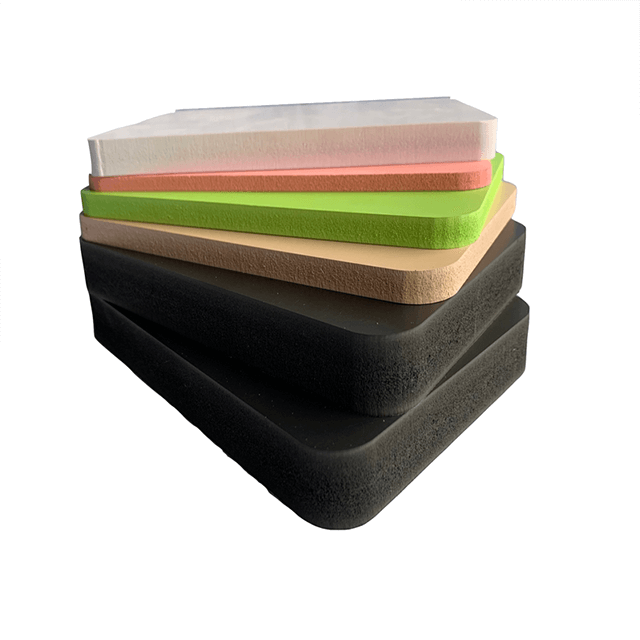

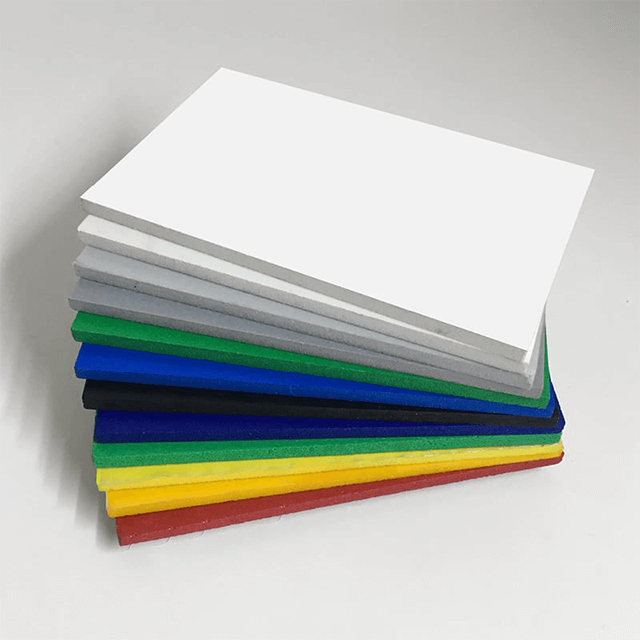

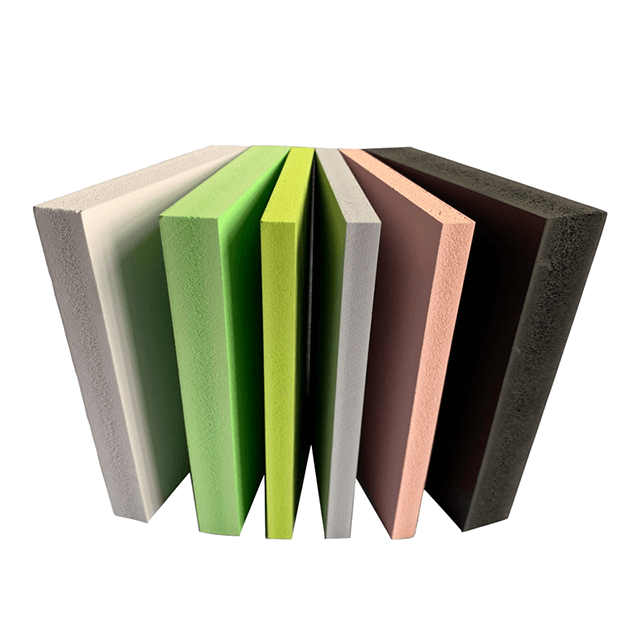

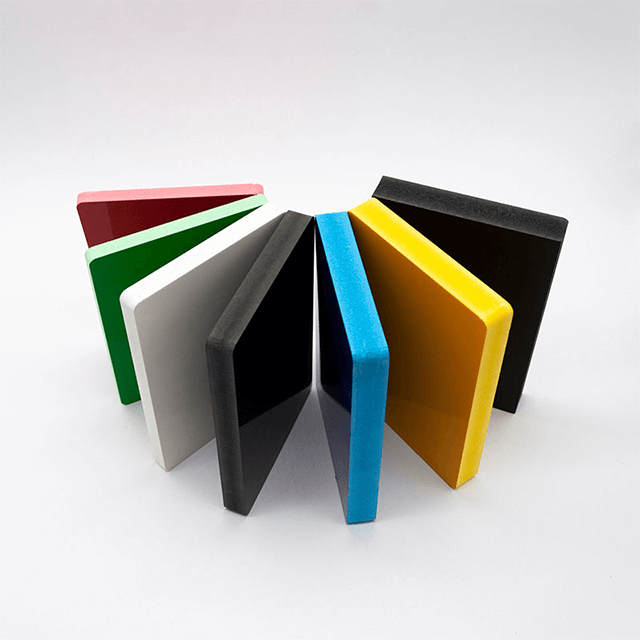

The Colored 2-30mm PVC Foam Board for Modeling redefines creative precision in architectural modeling, prototype development, and artistic craftsmanship through its engineered composition and vibrant color range.
| Quantity: | |
|---|---|
This professional-grade modeling material features a homogenous foam core (density 0.55–0.75g/cm³) with a smooth, pigment-rich surface layer, manufactured using advanced through-color technology that eliminates white core exposure even after extensive cutting and sanding. Available in 28 standard colors (including fluorescent variants) and thicknesses from 2mm to 30mm, it meets GB/T 22789.1-2008 standards and holds ISO 9001 certification for consistent batch-to-batch quality. Its exceptional dimensional stability (tolerance <0.05mm/m) and uniform density distribution make it the preferred choice for scale modelers, product designers, and educators requiring precise replication of intricate details.
Engineered for Precision Modeling Workflows
The material’s balanced hardness (Shore D hardness 65–70) enables both delicate detailing and structural integrity, with detail resolution down to 0.05mm for miniature components. Unlike polystyrene sheets (prone to crumbling) or acrylic (expensive for large models), this PVC foam board maintains edge sharpness during sanding while allowing controlled flexibility for curved surfaces (minimum bending radius 20cm for 5mm thickness).
Colorfast Performance for Long-Term Projects
Infused with UV-stable pigments and anti-oxidants, the boards retain 98% color intensity after 2,000 hours of indoor lighting exposure (ΔE <1.2 per BS EN 513), preventing premature fading in display models. The non-porous surface accepts acrylic paints, markers, and spray finishes without primer, enabling seamless color blending and customization.
Efficient Material Usage & Workability
Standard modeling tools (craft knives, laser cutters, hot wire cutters) produce clean results with minimal dust generation (40% less than balsa wood). Thin sheets (2–10mm) excel at architectural elevations and landscape detailing, while thicker boards (15–30mm) support structural components like model frameworks and dimensional lettering. Material waste is reduced by 30% compared to traditional modeling materials due to its consistent machinability.
Architectural & Engineering Models
Ideal for scale buildings, urban planning models, and industrial prototypes where color-coding of components (walls, floors, structural elements) enhances design communication. The 5–10mm thicknesses are preferred for detailed facade replications.
Educational & Hobbyist Projects
Used in schools, makerspaces, and hobbyist workshops for STEM projects, dioramas, and custom figurines. Its safe composition (free from heavy metals per REACH standards) makes it suitable for educational environments.
Retail Display Prototyping
Enables brands to create realistic 3D prototypes of packaging, shelving, and in-store displays before mass production. The material’s printability allows application of mock branding and graphics.
Q: What laser cutter settings work best for intricate patterns?
A: For 2–5mm boards: 30–50W power at 20mm/s speed; 10–30mm boards: 60–80W power with 10mm/s speed for clean cuts without charring.
Q: Can it be glued to other materials like wood or metal?
A: Yes, cyanoacrylate adhesives (super glue) or PVC-compatible contact cement provide strong bonds. Allow 24-hour curing for maximum strength.
Q: What thickness is recommended for architectural model walls vs. furniture?
A: Walls: 2–5mm (balances detail and weight); furniture/components: 5–10mm (provides sufficient rigidity for handling).
Q: How does it compare to traditional modeling foam in durability?
A: It is 5x more impact-resistant (Izod strength 14kJ/m²) than standard modeling foam, preventing accidental damage during model transport and display.
