The High-Density Cabinet PVC Foam Board for Cabinetry delivers industrial-grade performance for heavy-duty cabinet construction, combining exceptional structural strength with all-environment durability.
| Quantity: | |
|---|---|
This premium material features a dense foam core (density 0.9–1.0g/cm³) engineered to outperform traditional wood-based panels in demanding applications. Available in thicknesses from 12mm to 30mm and 8 cabinet-specific colors, it meets EN 12871 furniture standards and achieves screw holding strength ≥900N—making it suitable for heavy doors, countertops, and load-bearing shelving. Manufactured using a halogen-free formulation, it achieves IPX7 waterproof rating (1m immersion for 30 minutes) and emits <0.001mg/m³ formaldehyde, exceeding indoor air quality requirements for residential and commercial spaces.
Industrial-Strength Structural Performance
The high-density core provides bending strength of 12–18MPa (ASTM D790) and static load capacity of 80kg/m² without deflection, supporting heavy countertop materials like granite and solid surface. Its modulus of elasticity (800–900MPa) ensures cabinet doors maintain alignment even with frequent use.
All-Environment Resistance
Withstands temperature extremes from -40°C to 80°C with dimensional change <0.1%, preventing warping in unheated garages or commercial kitchens. The closed-cell structure resists water absorption (<0.08% by weight) and chemical degradation from cleaning agents, food acids, and industrial solvents.
Precision Machinability for Custom Cabinetry
Uniform cell structure enables clean cuts, drilled holes, and routed edges with minimal tool wear, while its rigidity minimizes vibration during CNC machining for precise hardware placement (tolerance ±0.1mm). It accepts edge banding, veneers, and laminates without pre-treatment, supporting custom aesthetic finishes.

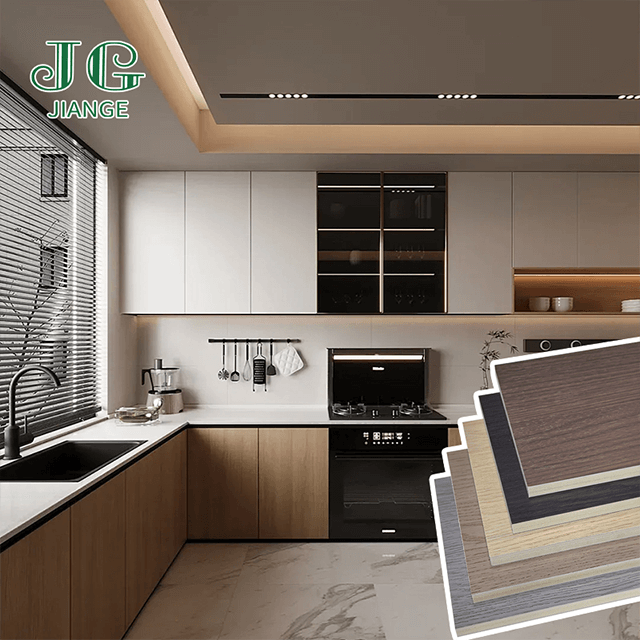

Heavy-Duty Kitchen Cabinets
Ideal for commercial kitchens, restaurant storage, and residential pantries requiring durability for heavy cookware and small appliances. The 25–30mm thicknesses provide sufficient strength for island countertops and breakfast bars.
Bathroom Cabinetry & Vanities
Perfect for high-moisture environments where traditional materials fail, supporting stone countertops and resisting mold growth without chemical treatments (ASTM D3273: 0 colony formation).
Industrial Storage Systems
Used in warehouse shelving, tool cabinets, and laboratory casework requiring load-bearing capacity and chemical resistance. Its impact resistance (Izod strength 18kJ/m²) withstands heavy item placement and occasional impacts.
Q: What thickness is recommended for cabinet shelves holding heavy items?
A: 20mm thickness supports 40kg per linear meter at 60cm span; 25mm thickness increases capacity to 60kg per linear meter at the same span.
Q: Can it be used for undermount sink installations?
A: Yes, 30mm thickness provides sufficient support for undermount sinks when reinforced with PVC corner brackets, meeting ANSI Z124.1.2 standards for kitchen cabinetry.
Q: How does it compare to marine plywood in waterproof performance?
A: It outperforms marine plywood with 90% less water absorption (0.08% vs. 2.5% for plywood) and maintains structural integrity indefinitely in wet conditions, unlike plywood which gradually degrades.
Q: What hardware works best with this high-density material?
A: Heavy-duty cabinet hinges with 35mm cup depth and #10 wood screws provide optimal performance, with recommended pre-drilling to prevent surface cracking.
