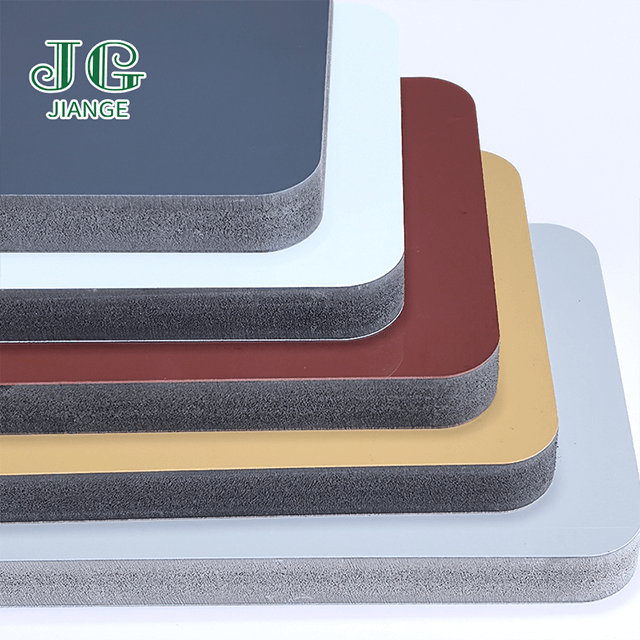

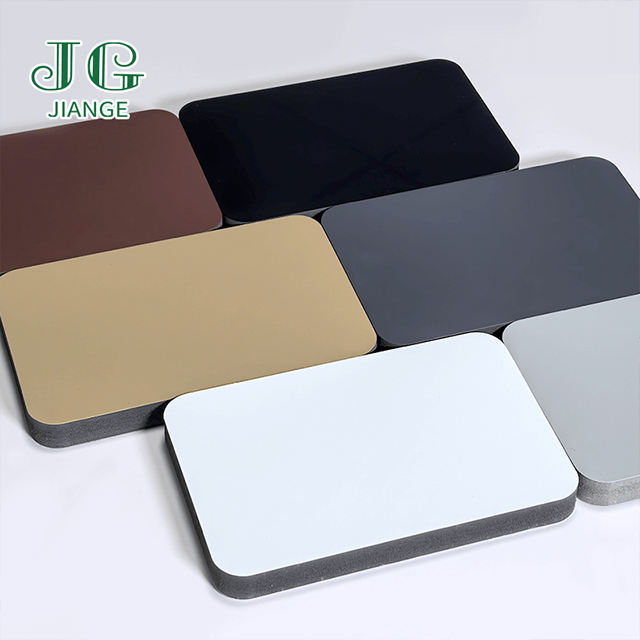

The 3-30mm Waterproof PVC Foam Board for Cabinet delivers all-environment protection for cabinetry in moisture-prone areas, from kitchens to laundries. Engineered with a fully closed-cell structure and proprietary water-repellent additives, this board achieves IPX7 waterproof rating (1m immersion for 30 minutes without water ingress) and water absorption <0.1% by weight—outperforming traditional plywood (20% absorption) and MDF (30% absorption) by orders of magnitude. Available in thicknesses from 3mm to 30mm and 15 durable colors, it meets FDA food-contact standards and emits <0.01mg/m³ formaldehyde, making it suitable for food storage cabinets. Its high-density core (0.65–0.85g/cm³) provides the structural rigidity required for cabinet doors, shelves, and drawer fronts.
Total Moisture Barrier Technology
Every cell in the foam structure is sealed during extrusion, preventing capillary water uptake. Unlike laminate-covered particleboard (which delaminates when edges get wet), this board maintains integrity even with exposed cut edges in continuously damp environments.
Structural Strength for Heavy Loads
Designed to support 50kg/m² static loads (EN 12871) without deflection, making it suitable for pantry shelves storing canned goods and small appliances. The material’s tensile strength (>20MPa per ASTM D638) ensures screws and hardware retain grip through repeated use.
Chemical Resistance for Kitchen Environments
Resists degradation from cooking oils, vinegar, citrus juices, and common cleaning agents (ASTM D543: no visible effect after 30-day exposure). The non-porous surface prevents staining, with most spills cleaning up with mild soap and water.
Kitchen Cabinetry
Perfect for base cabinets (especially under sinks), pantry shelves, and island fronts where water exposure is inevitable. The white and cream variants complement most kitchen color schemes.
Laundry Room Storage
Ideal for detergent storage cabinets and utility shelves, resisting damage from laundry additives and occasional flooding.
Outdoor Kitchens
Suitable for covered outdoor cabinetry in patios and decks, withstanding rain and humidity without warping or rot.
Q: What thickness is recommended for cabinet doors vs. shelves?
A: Doors: 12–18mm (balances weight and rigidity); shelves: 15–25mm (thicker for heavier loads >20kg per linear meter).
Q: Can it be used with undermount sink installations?
A: Yes, 25–30mm thicknesses provide sufficient support when reinforced with PVC corner brackets, meeting ANSI Z124.1.2 standards.
Q: How does it handle extreme temperature fluctuations?
A: Stable from -20°C to 70°C with dimensional change <0.2%, preventing door binding in garages or unheated spaces.
Q: Is it compatible with magnetic door catches?
A: Yes, the dense outer layer allows strong magnetic adhesion (pull force >2kg with standard 30mm diameter magnets).
